Stick Logger

Name: Stick Logger
Brand: IGEN Tech Co., Ltd.
Availability: InStock

SOLARMAN stick logger supports GPRS, WiFi, 4G, Ethernet and other communication method. Furthermore, stick logger supports RS485/RS232/TTL/USB and other serial communication. With the design of multi-cover, it adapts to a vast majority of inverters. By collecting operating status and power generation of inverter, stick logger can run a long-term and efficient monitoring of PV system, which increases work efficiency and reduces management cost significantly. With its extended functions, such as GNSS, power-off reminder, Bluetooth, stick logger enables a qucik configuration at site and an easy plant O&M.

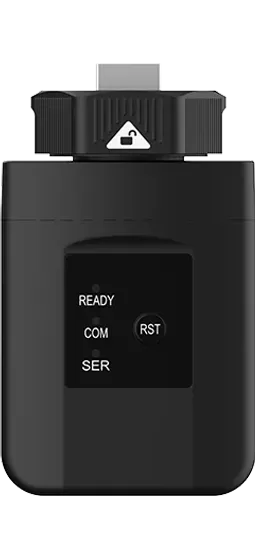

Stick Logger Feature

Status Indicators

External indicator lights, ensuring collection status at a glance

Plug & Play

Plug and play, no extra power supply is required

Independent Module

Independent module, protecting internal parts of inverter

Waterproof Design

Waterproof design, resistant to bad weather

Easy Replacement

External design, easy to replace faulty equipment

Remote Data Review

Review data and yields via SOLARMAN Smart at anytime and anywhere

Power-off Reminder

Extended function: Power-off reminder

GNSS Function

Extended function: GNSS

Stick Logger Parameters

LS4G-6-G

LSW-Mini

LSW-6

LSW-3

Communication Parameters

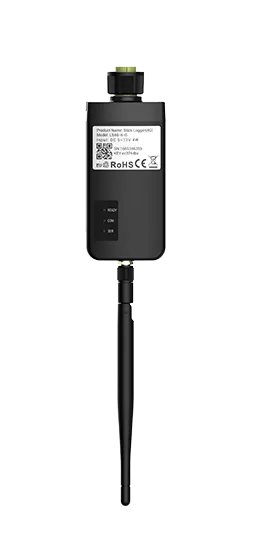

Product Model	LS4G-6-G
Remote Communication Interface	4G+2G+WiFi 6
Antenna	4G External Antenna
Data Interface	USB, RS485, RS232, TTL
Working Voltage	DC 5-12V
Working Power	≤4W

Hardware Parameter

External Interface	USB2.0, Aeronautical head (Big/Small), USB3.0, DB9
Data Interface	USB, RS485, RS232, TTL
Data Storage	8MB
SIM Card	Chip card/Plug-in card
Antenna	4G external antenna
Working Voltage	DC 5-12V(±5%)
Working Power	<4W
Indicator Light	One shows stickier running status<br>One shows communication status with inverter<br>One shows communication status with server
Working Temperature	-30℃~70℃
Working Humidity	10%-90%, no condensation
Storage Temperature	-45℃~90℃
Storage Humidity	<40%, no condensation

Software Parameter

No. of Connections	One
Serial Communication Rate	Default: 9600bps(1200-115200bps optional)
Data Transmission Interval	Default: 5 mins
User Configuration	Remote server/APP configuration
Firmware Upgrade	Local/Remote upgrade
Real-time Control	√
Breakpoint Resuming	√

Communication Parameters

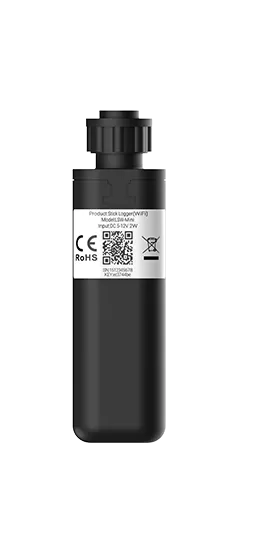

Product Model	LSW-Mini
Remote Communication Interface	WiFi 6
Antenna	Embedded Antenna
Data Interface	USB, RS485, RS232, TTL
Working Voltage	DC 5-12V
Working Power	2W

Hardware Parameter

External Interface	USB2.0, USB3.0, Aeronautical head (Big/Small)
Data Interface	USB, RS485, RS232, TTL
Data Storage	8MB
Antenna	Embedded antenna
Working Voltage	DC 5-12V (+5%)
Working Power	2W
Indicator Light	One way
Working Temperature	-30°C~+70°C
Working Humidity	10%-90%, no condensation
Storage Temperature	-45°C~+90°C
Storage Humidity	<40%, no condensation

Software Parameter

No. of Connections	One
Serial Communication Rate	Default: 9600bps(1200-115200bps optional)
Data Transmission Interval	Default: 5 mins
User Configuration	Remote server/APP configuration
Firmware Upgrade	Local/Remote upgrade
Real-time Control	√
Breakpoint Resuming	√

Communication Parameters

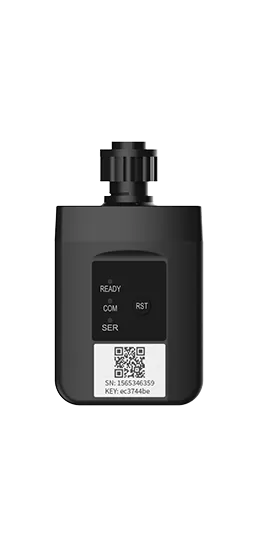

Product Model	LSW-6
Remote Communication Interface	WiFi 6
Antenna	——
Data Interface	USB, RS485, RS232, TTL
Working Voltage	DC 5-12V
Working Power	2W

Hardware Parameter

External Interface	USB2.0, Aeronautical head (Big/Small), USB3.0, DB9
Data Interface	USB, RS485, RS232, TTL
Data Storage	8MB
Working Voltage	DC 5-12V(±5%)
Working Power	2W
Indicator Light	One shows stick logger running status<br>One shows communication status with inverter<br>One shows communication status with server
Working Temperature	-30℃~70℃
Working Humidity	10%-90%, no condensation
Storage Temperature	-45℃~90℃
Storage Humidity	<40%, no condensation

Software Parameter

No. of Connections	One
Serial Communication Rate	Default: 9600bps(1200-115200bps optional)
Data Transmission Interval	Default: 5 mins
User Configuration	Remote server/APP configuration
Firmware Upgrade	Local/Remote upgrade
Real-time Control	√
Breakpoint Resuming	√

Communication Parameters

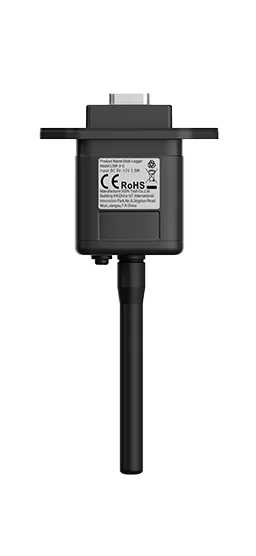

Product Model	LSW-3
Remote Communication Interface	2.4G WiFi
Antenna	External Antenna
Data Interface	RS485/RS232/TTL
Working Voltage	DC 5-12V
Working Power	1.5W

Hardware Parameter

Data Interface	RS232
Working Voltage	DC5V-DC12V
Max. Working Voltage	DC 15V
Working Power	1.5W
Indicator Light	One connected to inverter<br>One connected to router<br>One heartbeat indicator light
Data Storage	Default: 2MBYTE FLASH
Working Temperature	-30℃~+70℃
Working Humidity	Relative humidity: 10%-90%, no condensation
Storage Temperature	-45℃~+90℃
Storage Humidity	<40%
IP Grade	IP65
External Interface	DB9

Software Parameter

Number of Connections	One
Serial Communication Rate	Default: 9600bps (1200-115200bps Optional)
Data Transmission Interval	Default: 5 mins (1-15 mins Optional)
Configuration	AT+instruction set<br>Local web configuration<br>Remote server
Firmware Upgrade	Local web upgrade<br>Remote update
Working Mode	AP+STA
Others	Real-time Control, Data resuming
