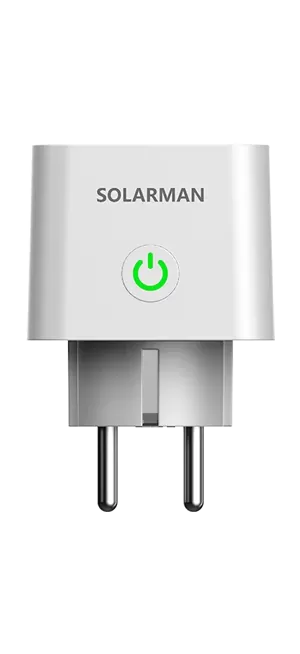

Smart Plug

Name: Smart Plug
Brand: IGEN Tech Co., Ltd.
Availability: InStock

SP-2W-EU is an advanced smart metering plug, specially designed for various household scenarios, which features in bidirectional measurement and remote control. It can send the real-time data to local or remote platform via WiFi. Users can remotely control the plug to switch connected appliances on or off and monitor the consumption data through the smartphone or computer. With the ability to adjust appliance settings as needed, SP-2W-EU enhances the convenience and efficiency of home energy management significantly.

Smart Plug Feature

Bidirectional Metering Chip

High accuracy metering chip, realizing bidirectional measurement

High Load Capacity

3680W load-bearing capacity, 16A safe load

Dual Wireless Communication

Support WiFi/Bluetooth communication, easy for data cloud integration

Dual-mode Smart Control

Remote and local control, realizing intelligent management for household appliances

Energy Storage Linkage

Connect energy storage devices, easy for linkage control

Wide Voltage Compatibility

Wide voltage (AC 110-250V) design, compatible with different voltage environment

Multi-level Security Protection

Embedded multiple security protection mechanisms, no worry for electricity usage

ETSI EN 303645 Compliance

Compliant with ETSI EN 303 645 standard, ensuring user privacy

Smart Plug Parameters

SP-2W-EU

Communication Parameters

Remote Communication	2.4GHz WiFi
WiFi Standard	802.11b/g/n
WiFi Frequency	2.412GHz-2.472GHz (CH1~CH13)
WiFi Transmission Power	802.11b:+17dBm±1.5dBm (@11Mbps) 802.11g:+15dBm±1.5dBm (@54Mbps) 802.11n:+14dBm±1.5dBm (@HT20, MCS7)
Bluetooth Standard	BLE 5.0
Bluetooth Frequency	2.402GHz-2.480GHz
Bluetooth Transmission Power	Max 15dBm

Hardware Parameters

Standard	European standard
Dimension	55.0mm55.0mm81.8mm
Working Voltage	AC 110-250V 50Hz/60Hz
Load Power	16A Max. 3680W resistive load
Indicator Light	One ON/OFF indicator light
Measurement Parameter	Power (W)/Energy (kWh)/Voltage (V)/Current (A)
Metering Accuracy	3%
Memory	2MBYTE FLASH
Working Temperature	-20℃ ~+50℃
Working Humidity	10%-70% RH (No Condensation)
Storage Temperature	-45℃ ~+90℃
Storage Humidity	<40% RH (No Condensation)
Case Material	UL94V0
Anti Electric Shock	Anti Electric Shock Protection Door
Protection Mechanism	Load Protection

Software Parameters

Data Transmission Interval	Default: 5 mins (when data remain unchanged)/ Data will be uploaded immediately once it changed.
Firmware Upgrade	APP/Remote server
User Configuration	APP
Remote Control	√

SP-2W-EU
