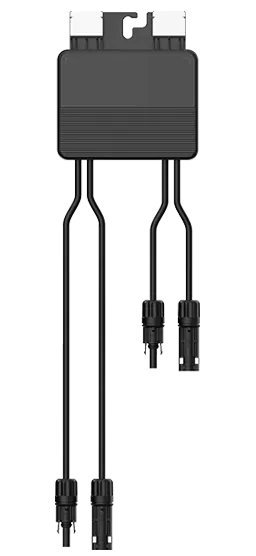

Module PV Optimizer

Name: Module PV Optimizer
Brand: IGEN Tech Co., Ltd.
Availability: InStock

By utilizing module-level power optimization technology, SOLARMAN module PV optimizer can recover the electricity loss caused by component mismatch, and increase the system power generation by 5 to 30%. Additionally, SOLARMAN optimizer is equipped with rapid shutdown function compliant with safety regulations of various countries, ensuring fire safety and O&M security. Through module-level data monitoring, SOLARMAN optimizer realizes fine-tuned management, which is able to identify inefficient modules promptly.

Module PV Optimizer Feature

Power Boost

Increase the system power generation by 5% to 30%

Safe Shutdown

One-click rapid shutdown, compliant with safety regulations worldwide

Module Monitoring

Module-level data monitoring for fast troubleshooting

Long Lifespan

Adopt automotive-grade chip with 30-year design life

Easy Setup

Easy to install, convenient debugging and configuration via APP

Flexible Connection

Connect to partial or all modules according to actual situation

Inverter Compatibility

Compatible with 99% of inverter brands

Videos of Module PV Optimizer

Module PV Optimizer Parameters

MPO 650/850

Communication Parameters

Product Model		MPO650	MPO850
Input Parameter	Peak Conversion Efficiency	99.50%
	Rate Input Power	650Wp	850Wp
	Max. Input Voltage	70V
	Max. Input Current	16A	20A
	MPPT Voltage Range	10-70V
Output Parameter	Max. Output Power	650Wp	850Wp
	Max. Output Voltage	65V
	Max. Output Current	16A	20A
COM Parameter	Communication Type	BLE Mesh
	Max. Distance	300m
	No. of Single Network Connection	300
Others	Dimension (mm)	130.3102.222.7
	Weight (with cable-standard configuration)	711g	868g
	Installation	Screw+Clip
	Connector	NIU A4 max/QC/MC4
	Cable	4mm²/10-12AWG
	Working Temperature	-40°C~+85°C
	IP Grade	IP68
	Certification Standard	CE/RoHs/REACH/TUV

MPO 650/850

Module PV Optimizer Solution
