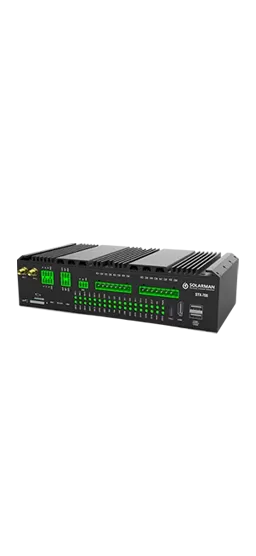

C&I Energy Manager

Name: C&I Energy Manager
Brand: IGEN Tech Co., Ltd.
Availability: InStock

Gateway-type EMS can interface with the local EMS/EMU of energy storage systems or directly connect with various equipment units in energy storage systems. STX-700 is a new-generation smart gateway for industrial loT in energy storage field. This product adopts a high-performance embedded CPU and large-capacity eMMC storage. With its excellent system configuration, it provides high-speed data processing and efficient application performance.

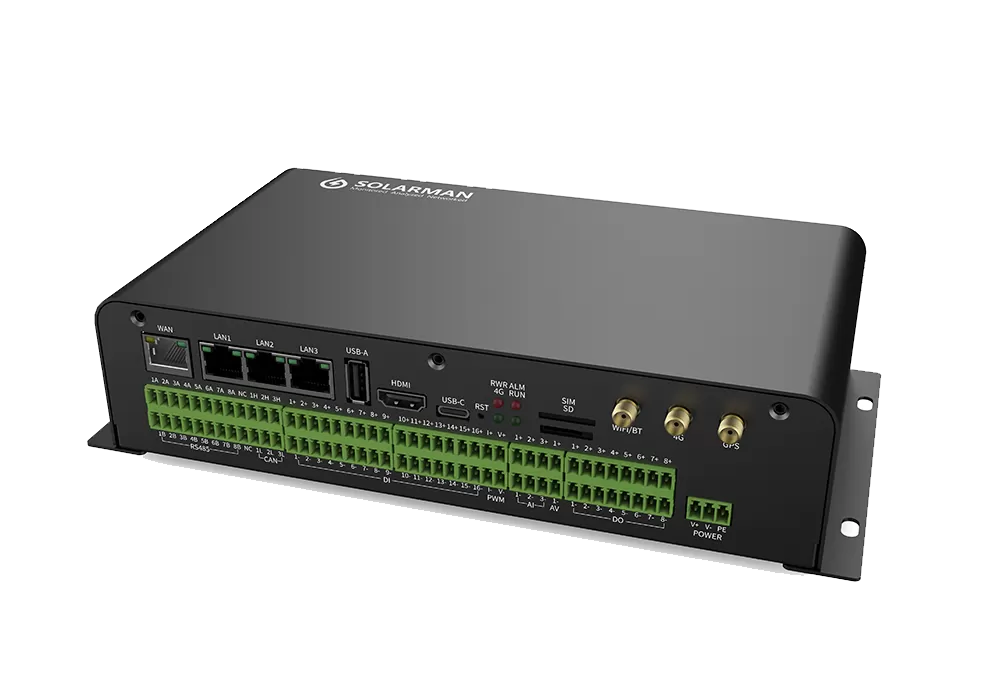

C&I Energy Manager Feature

Supported Protocols

101,104, 61850, MQTT, Modbus, ModbusTCP, OPCUA, Bacnet/IP, etc.

Multi-device Data Integration

Enable data communication, conversion, and collection for 250+ mainstream PLC devices and RS485/232 interface devices.

C&I Energy Manager Parameters

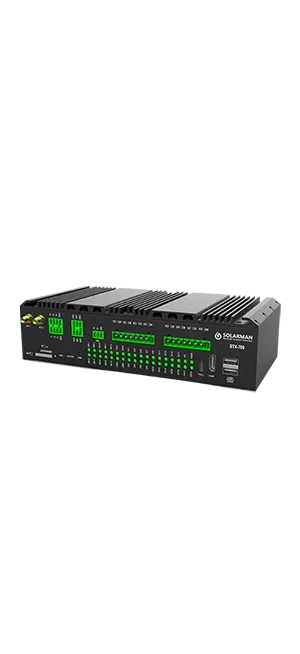

EMS-1P

Communication Parameters

CPU	CPU	High-performance 4-core 64-bit processor, max frequency 2.0GHz
	DDR3	Onboard LPDDR4, 2GB (optional 4G/8G)
	EMMC	Onboard eMMC, 16GB (optional32G/256G)
Communication	4G/5G	Support standard 3G/4G/5G communication modules
	WIFI BT	IEEE802.11b/g/n/a/ac 2T2R
	WIFI BT	Compatible with Bluetooth 2.1/3.0/5.0

Interface Parameter

USB	1x USB2.0 Type A, 1x USB3.0 Type A
RS232	2x RS232 (2 channels shared with RS485 via hardware selection)
RS485	10x isolated RS485 (2 channels shared with RS232), isolation voltage 3KV
LAN	4x LAN RJ45 10M/100/1000Mbps
CAN	3x isolated CAN
AI	4x AI, supports 4-20mA or 0-10V collection
DO	8x relay-type outputs (5G AC240C/28VDC)
DI	18x dry contact/wet node digital inputs
HDMI	1x HDMI interface
SIM	1x drawer-type SIM card slot

Other Parameter

Indicator	Power, status, LAN 4G, WiFi, serial port, CAN port, DI data LED indicators
Watchdog Timer	1x CPU watchdog, 1x external hardware watchdog
Operating humidity	0%-90%RH, no-condensing
Operating temperature	-40℃-70℃
Power supply	DC 12-36V wide input, 10KV ESD protection

Environmental Parameter

Drop resistance	IEC60068-2-32
Shock resistance	IEC60068-2-27
Vibration	IEC60068-2-6
Surge	EN61000-5-level3
ESD	GB/T 17626.2-level3
Conducted disturbance	EN61000-4-6-level3
Radiated field	EN61000-4-3-level3
Pulsed field	EN61000-4-4-level3
Power frequency magnetic field	EN61000-4-8 horizontal/vertical 400A/m (c-level3)
Oscillatory wave immunity	EN61000-4-12-level3

EMS-1P
